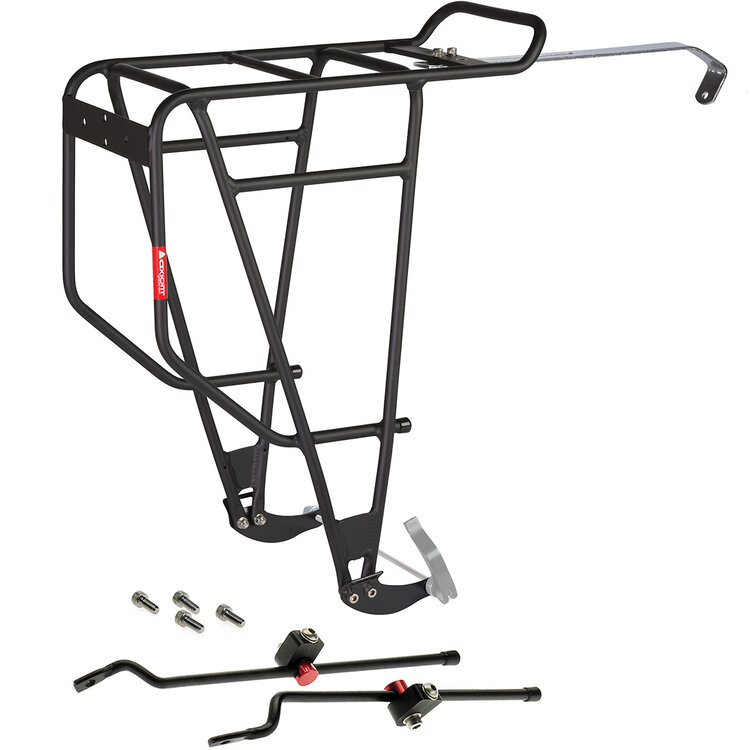

Axiom Streamliner® Fatliner

We threw 80's blueprints (that everyone else copies) out the window and designed a rack that solves heel clearance and compatibility issues that arise when trying to install traditional racks on modern bicycles. Install a Streamliner® Fatliner rack on almost any fat bike, and let your bike do the work for you.Construction:

• Hand-welded, tubular 10.2mm 6061 T6 aluminum.
• High-strength steel modular feet.
• Durable anti-scratch coating.

Mounting System:

• Feet mount to a standard quick-release skewer* (not included) or to traditional eyelets.
• Extra-long (280mm), adjustable Versalock® arms (for frames with eyelets).
• Heavy-duty center bracket can be attached to a brake caliper or fender bridge.

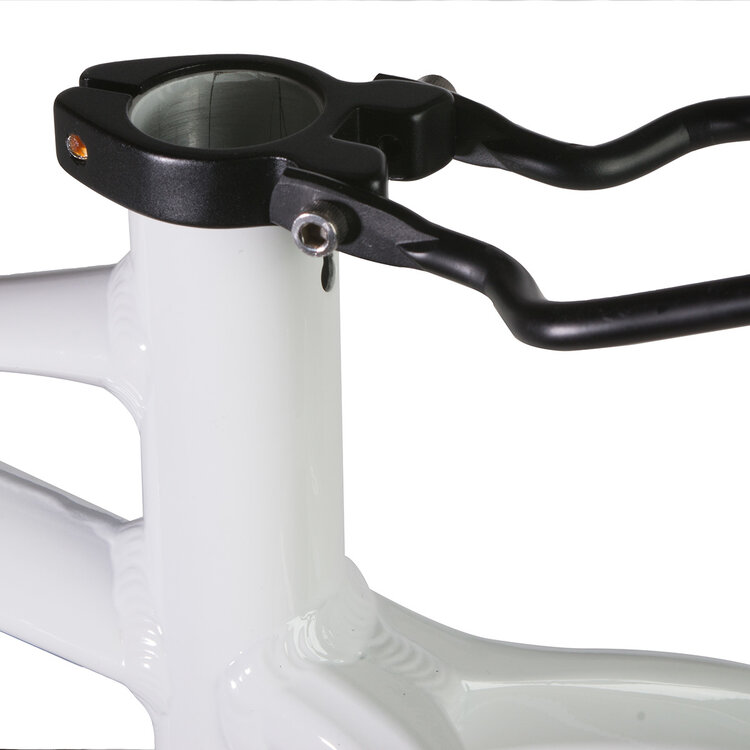

• Optional (255120-01~04) 'Trekk Seat Collar' (not included) can be used to add upper eyelets to bikes that have none.
• Optional (171356-17) 'Nutted Axle Kit' can be used to fit bikes with bolted axles. *See axiomgear.com for Thru-axle solutions.

Features:

• Exceptional torsional stiffness.
• Suitable for use with all frame materials, including carbon fibre.
• Attaches to a standard quick-release skewer or to traditional dropout eyelets.

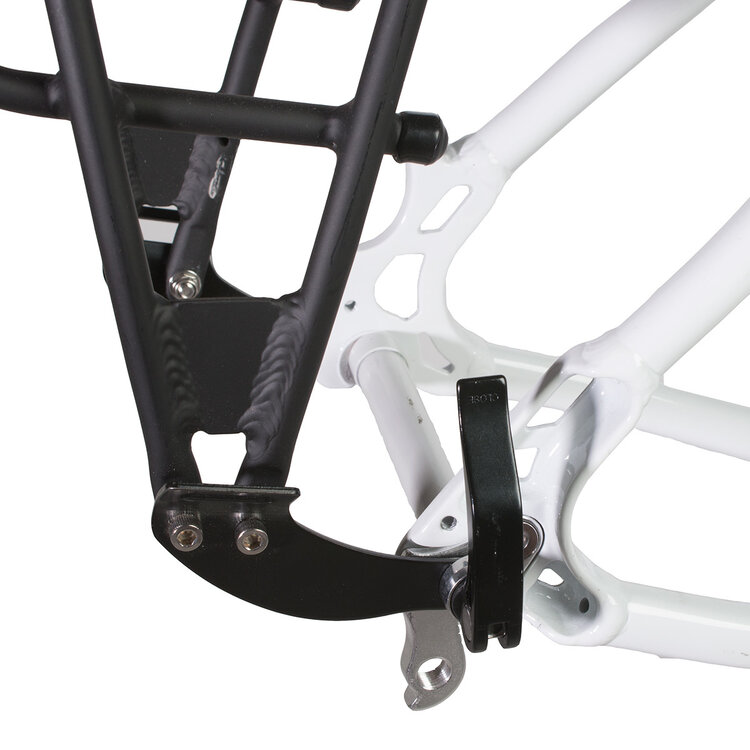

• Modular sweepback feet maximize heel clearance and accommodate disc brakes without adding needless extra width that otherwise affects handling.
• Dual horizontal mounting bars allow load height to be tuned.
• 280mm Versalock® arms are long enough to fit even the smallest of bikes.
• Versalock® arms can be DIY bent up to 30 degrees without reducing strength.
• Versalock® brackets can be mounted under or over the rack platform to help overcome mounting challenges found on some bikes.
• Double welded for extra strength and long-term durability.
• Lifetime warranty.
• Fits 170-190mm dropout spacing.
• Rear bolts on feet can be used as fender mounts.
• Reflector/light mount, Frame bolts included
• Lifetime warranty.

Compatibility: 26" / 27.5" FAT (up to 5.0")

Stay length; 427bmm / 16.8"

Platform size: 355 mmx170 mm / 14" x 6.7"

Weight: 982 g / 2.16 lbs (including hardware)

Capacity: 50 kg / 110 lbs
