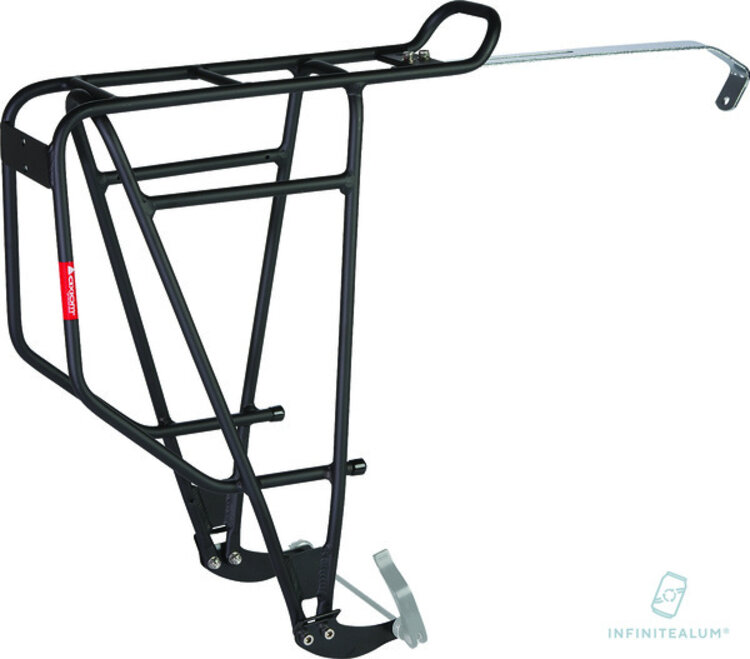

STREAMLINER 29'ER DLX

Bikes have changed… So should racks! We threw 80's blueprints (that everyone else copies) out the window and designed a rack that solves heel clearance and compatibility issues that arise when trying to install traditional racks on modern large-wheeled bicycles. Install a Streamliner® rack on almost any 27.5" or 29" wheeled bike, and let your bike do the work for you.Construction:

• Hand-welded, tubular 10.2mm 6061 T6 aluminum.
• High-strength steel modular feet.
• Durable anti-scratch coating.

Mounting System:

• Feet mount to a standard quick-release skewer* (not included) or to traditional eyelets.
• Extra-long (280mm), adjustable Versalock® arms (for frames with eyelets).
• Center bracket can be attached to a brake caliper or fender bridge.
• Optional (255120-01~04) 'Trekk Seat Collar' (not included) can be used to add upper eyelets to bikes that have none.
• Optional (171356-17) 'Nutted Axle Kit' can be used to fit bikes with bolted axles. *See axiomgear.com for Thru-axle solutions.

Features:

• Exceptional torsional stiffness.
• Suitable for use with all frame materials, including carbon fibre.
• Attaches to a standard quick-release skewer or to traditional dropout eyelets.
• Streamlined profile improves aerodynamics and greatly improves handling by keeping your load closer to center.
• Modular sweepback feet maximize heel clearance and accommodate disc brakes without adding needless extra width that otherwise affects handling.
• Dual horizontal mounting bars allow load height to be tuned.
• 280mm Versalock® arms are long enough to fit even the smallest of bikes.
