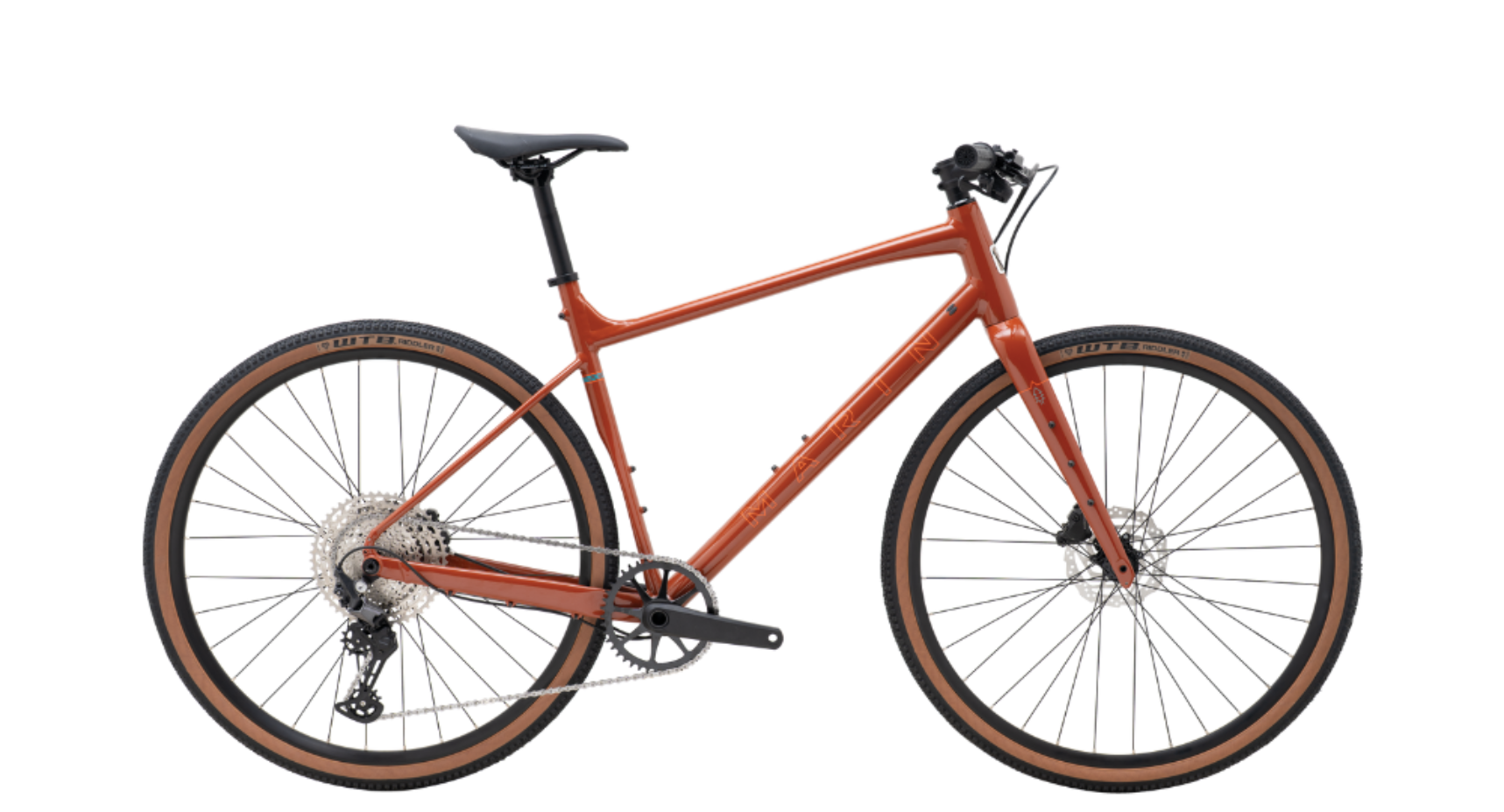

Marin DSX 2, Clay Orange, Large

The Marin DSX 2 is built around a Series 3 aluminum frame and a lightweight, carbon fork that’s packed with mounting points for bikepacking gear. There’s also a 12-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.

Specifications

• Frame

  Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

• Fork

  Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

• Rim

  Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible

• Hub Rear

  Forged Aluminum, 142x12mm, Disc Specific, 32H

• Hub Front

  Forged Aluminum, 100x12mm, Disc, 32H

• Spokes Nipples

  14g Black Stainless Steel

• Tires

  WTB Riddler, 700Cx45mm

• Derailleur Rear

  Shimano Deore, RDM6100, 12-Speed

• Derailleur Front

  -

• Shift Lever

  Shimano Deore, SLM6100, 12-Speed

• Crankset

  Forged Aluminum, 42T Steel Narrow Wide Chainring

• Bottom Bracket

  Sealed Outboard Bearing

• Chain

  KMC X12

• Cassette

  SunRace, 12-Speed, 11-51T

• Brakes Front

  Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

• Brakes Rear

  Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

• Brake Levers

  Tektro Hydraulic

• Handlebar

  Marin MiniRiser

• Stem

  Marin 3D Forged Alloy

• Grips

  Marin MTB

• Headset

  FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

• Seatpost

  Marin Alloy

• Saddle

  Marin DSX

• Pedals

  Nylon Platform

• Extras

  Bolt-On Thru-Axles F and R
